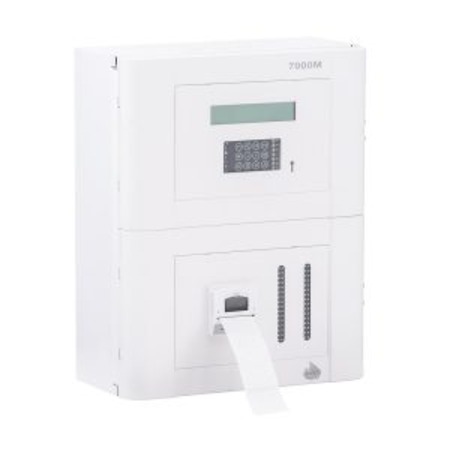

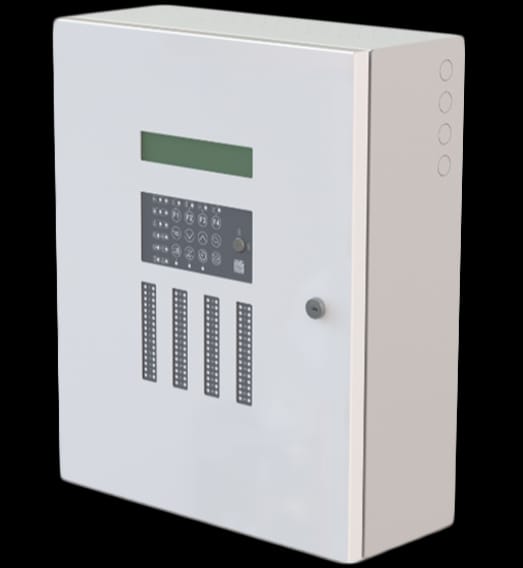

Maximal-D Fire Alarm System
The Maximal-D Fire Alarm System is a cutting-edge modular fire detection and alarm system designed for robust and scalable fire safety management. Below are its key features and capabilities:
—
1. Modular Design with Flexible Connectivity

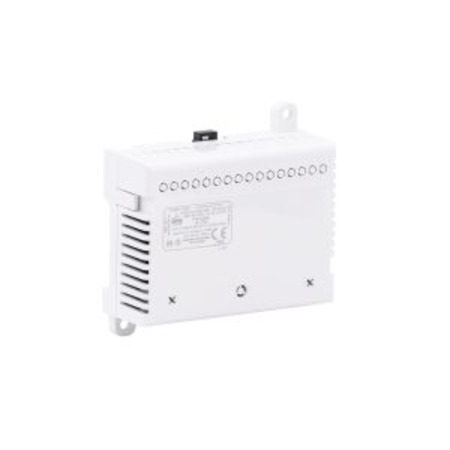

Loop and Input-Output Modules: The system supports a combination of connected loops and input-output modules, enabling versatile installation options.
Capacity:
Up to 10 loops can be connected to a single main panel.
Each loop supports up to 210 addressable devices, providing extensive coverage for large facilities.
—
2. Supported Addressable Devices
Smoke Detectors: Designed for early detection of smoke caused by fire.
Heat Detectors: Suitable for environments where temperature changes are critical indicators of fire.
Combined Detectors: Offer dual functionality for smoke and heat detection.

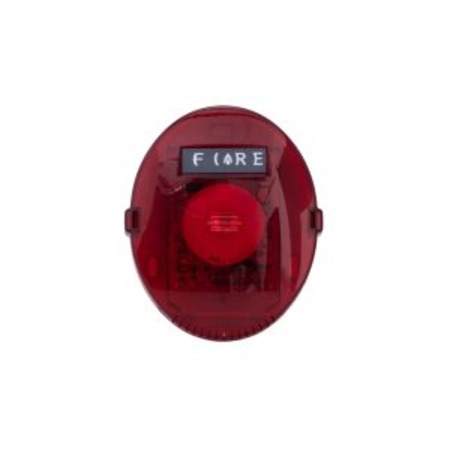

Manual Call Points: Allow manual activation of the fire alarm in emergencies.
Sounder Devices: Provide audible alerts for fire alarms.
Base Sounder Devices: Integrated sounders with detectors for space efficiency.
—
3. Zone Indication
Local Zone Indication: Displayed directly on the main panel for immediate response.
Repeater Panel Indication:
Zonal Indication: Allows monitoring of specific zones via repeater panels.
Extended Zonal Indication: Provides detailed information on zones for enhanced monitoring.
—
4. Custom Logic and Programming
WinUniConfig Software:
Enables users to create custom logics and tailor the system’s behavior to specific requirements.
Simplifies programming and configuration tasks.
Fire Scripts: Create personalized fire response scripts using dedicated configuration software for precise fire management strategies.
—
5. CI-Modes Compliance
Supports CI Modes A, B, and C, in adherence to EN54-2 standards, ensuring operational reliability under various conditions.
—
6. Networked Operation
Panel Networking:
Up to 16 panels can be networked using a reserved CAN-bus communication line.
Offers redundancy to maintain system reliability during faults or failures.
—
Applications
The Maximal-D Fire Alarm System is ideal for a wide range of applications, including:
Commercial Buildings: Offices, shopping malls, and industrial facilities.
Residential Complexes: Multi-story apartments and gated communities.
Public Spaces: Airports, hospitals, schools, and stadiums.
Critical Infrastructure: Data centers, warehouses, and manufacturing units.
Benefits
Scalability: Accommodates small to large-scale installations with ease.
Flexibility: Customizable for specific needs and environments.
Reliability: Redundant networking ensures consistent performance.
Compliance: Meets stringent international fire safety standards.
The Maximal-D system delivers unparalleled fire safety, ensuring robust protection through intelligent design and advanced technology.
