Description

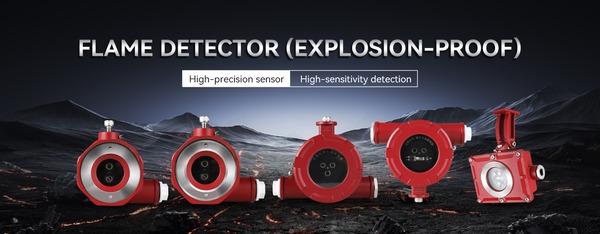

Point type infrared flame detector (explosion-proof type)
Maximal-D
Specification: Explosion proof fire and light detector, Explosion proof/protective certification:
Exd Ⅱ CT6 Gb/ExtD A21 IP67 T80 ℃
Product features:
An economical dual infrared flame detector that effectively detects
hydrocarbon (commonly known as red light) flames and alarms. This product meets the requirements of relevant regulations in
GB15631-2008, GB12791-2006, GB3836.1-2010, and GB3836.2-2010Application area：
Widely used in relatively enclosed places such as storage, equipment, and factories, for fire detection purposes, detectors can performfirelight detection and rapid alarm for fires. Product size: 140mm x 135mm x 109mm
Main technical parameters:
Spectral range (IR) : 3.8um, 4.4um
Working voltage: DC24V (16-32VDC)
Rated current static: ≤ 60mA, alarm ≤ 70mA
Environmental temperature/humidity :-20 ℃~55 ℃/≤ 95RHwithout condention
Fire sensitivity: level I (factory setting)
Rotation angle: up and down: 180 °, left and right 180 ° Detection angle :≤ 90 ° (maximum sensor angle ≤ 110 °)
Output alarm relay output: (normally open) fault relay output (normallyclosed)
Shell material/overall weight: die cast aluminum/1.6kg
Electrical interface: G3/4 (6 “) (internal thread)
Explosion proof sign/protection level :Exd ⅡCT6 Gb/ExtD A21 IP67T80 ℃/IP67
