Drager 5600

Drager 5600

Featuring an ergonomic design and innovative infrared sensor technology, the Dräger X-am® 5600 is one of the smallest gas detection instrument for the measurement of up to 6 gases. Ideal for personal monitoring applications, this robust and water-tight detector provides accurate, reliable measurements of flammable and toxic gases and vapors as well as oxygen

Category:

Description

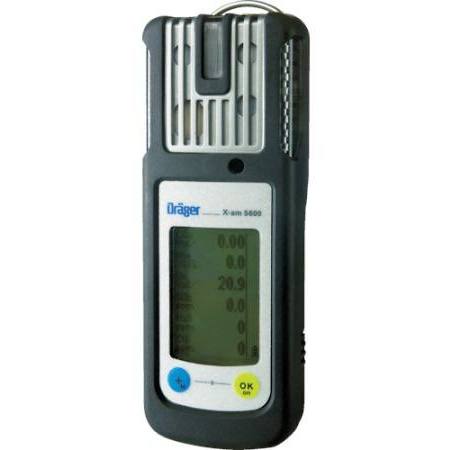

Dräger X-am® 5600

Multi-Gas Detector

The Dräger X-am® 5600 is a compact, lightweight, and ergonomic multi-gas detection instrument designed to measure up to six gases simultaneously. Utilizing advanced infrared sensor technology, this robust and waterproof device ensures accurate detection of flammable, toxic gases, vapors, and oxygen. Ideal for personal monitoring in industrial settings, it combines reliability with user-friendly operation.

Key Features

  • Durable Build: Rugged design, resistant to water and dust (IP67 rated).
  • Efficient Sensors: DrägerSensors® provide fast, precise measurements with a long service life.
  • Secure Attachment: Equipped with a crocodile clip for safe and easy attachment.
  • User-Friendly Display: Large screen offering clear readings of gas levels.
  • Safety-Oriented Design: Dual-sided gas entry and a 360° visible visual alarm for maximum safety.

Advantages

Compact and Sturdy

  • Small, lightweight, and designed for one-handed operation in demanding industrial conditions.
  • Integrated rubber boot ensures optimal functionality even in harsh environments.

Advanced Infrared Technology

  • Long-lasting infrared sensors with high stability and resistance to contamination.
  • Sensors require calibration only once a year, reducing maintenance costs.

Precise Dual Sensor Technology

  • Infrared sensor (IR Ex) measures hydrocarbons at the lower explosive limit (LEL).
  • IR CO2 sensor provides precise readings of carbon dioxide concentrations.
  • Dual-sensor configuration combines both for enhanced measurement accuracy.

Hydrogen Detection

  • Combines infrared and electrochemical sensor technologies to reliably detect flammable hydrogen concentrations.

Versatile Applications

  • Capable of detecting a wide range of gases including oxygen, carbon dioxide, hydrogen sulfide, ammonia, and organic vapors.
  • Easily adaptable to different tasks using Dräger CC-Vision software for sensor configuration and calibration.

Flexible Use Cases

  • External pump option for pre-entry measurements in confined spaces like tanks or pipelines.
  • Compatible with Dräger X-zone® 5500 for area monitoring and large-scale industrial applications.

Technical Specifications

  • Dimensions: 48 x 130 x 44 mm
  • Weight: 220–250 g
  • Operating Temperature: -20°C to +50°C
  • Humidity Range: 10–95% r.h.
  • Protection Class: IP67
  • Battery Life: Up to 12 hours (250+ hours without Ex sensor)
  • Pump Range: Maximum hose length of 45 meters

Certifications

  • ATEX: Certified for use in Zone 0 areas (constant explosive atmosphere risk).
  • IECEx: Global certification for hazardous environments.
  • CSA: Approved for use in Canada and the USA.

Accessories

  • External Pump: Facilitates clearance measurements in confined spaces.
  • Calibration Cradle: Ensures device functionality and compliance with safety standards.
  • Dräger X-dock®: Automatic testing and calibration system for reduced gas consumption.
  • Dräger Bump Test Station: Portable solution for quick and easy functionality tests.
